Chord Electronics

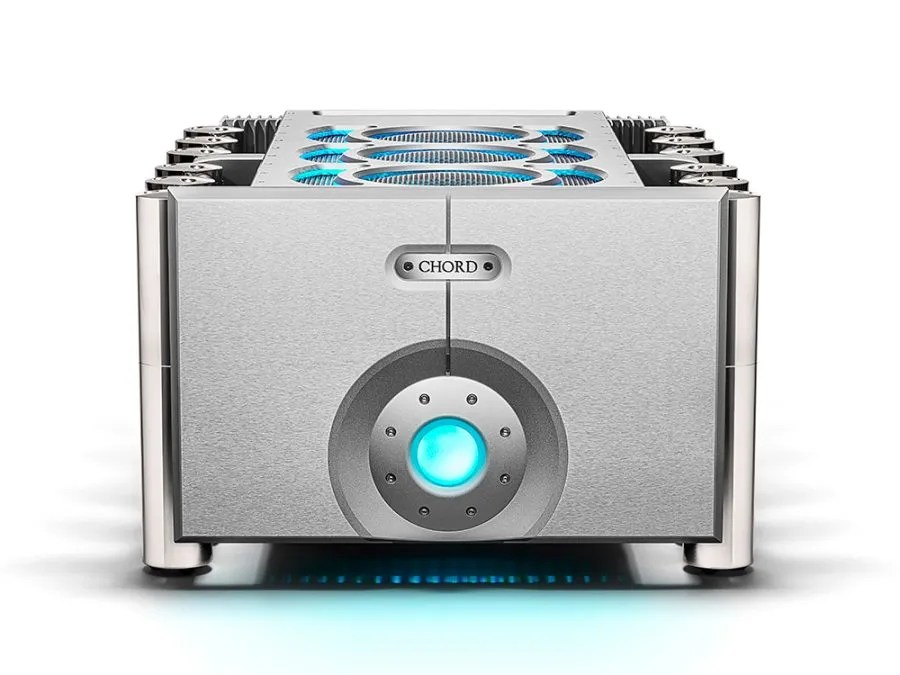

Ultima Mono Power Amp
Ultima, with no number after it, is the flagship mono power amplifier and the reason the rest of the range exists. Seven hundred and eighty watts into 8 ohms, 1,405 into 4, from sixty-four proprietary MOSFETs driven by circuitry that slews at 300 volts per microsecond. It was the first completely new circuit Chord had drawn since the company started: a dual-feed-forward error-correction topology developed from a paper by Malcolm Hawksford at Essex University, refined by Bob Cordell of Bell Labs, and finished with John Franks' own high-frequency power supplies. The number that explains how it sounds is not the wattage but the peak current — over 500 amps, delivered fast enough that a loudspeaker never waits. Sixty-six kilos each, and they are monoblocks: you need two.
Specifications
| Power output | 780 W RMS per channel into 8 Ω; 1,405 W RMS per channel into 4 Ω |
|---|---|
| Gain | 30 dB |
| Input impedance | 100 kΩ Unbalanced/Balanced |
| Output impedance | 0.04 Ω |
| Frequency response | -1 dB @ 0.2 Hz to 46 kHz and -3 dB 0.1 Hz to 200 kHz |
| THD | 0.005 % |
| Signal-to-noise ratio | Better than -90 dB |
| Inputs | 1x Balanced XLR Inverted Input; 1x Balanced XLR Non-inverted Input; 1x Gold Plated Unbalanced RCA Inverted Input; 1x Gold Plated Unbalanced RCA Non-inverted Input; 1x 12v Trigger Input – Chord Electronics Auto Start |
| Outputs | 2x Pair of High Quality, High Current, Gold Plated Type Speaker Terminals (Bi-wireable) |
| Power consumption | Full power – 3,500 W; Standby – 10 W |
| Dimensions, with Integra legs | 30.5 cm (H) x 48 cm (W) x 75 cm (D) |
| Dimensions, with side blocks | 28.5 cm (H) x 42 cm (W) x 75 cm (D) |
| Weight | 66.7 kg |
| Finishes | Black; Silver |
| In the box | ULTIMA Quickstart guide; Safety instructions; 15A Mains IEC cable |
Where to listen
Every model is sold and demonstrated through Joenit's authorized dealer network across Europe. Find your nearest dealer to hear it for yourself.
